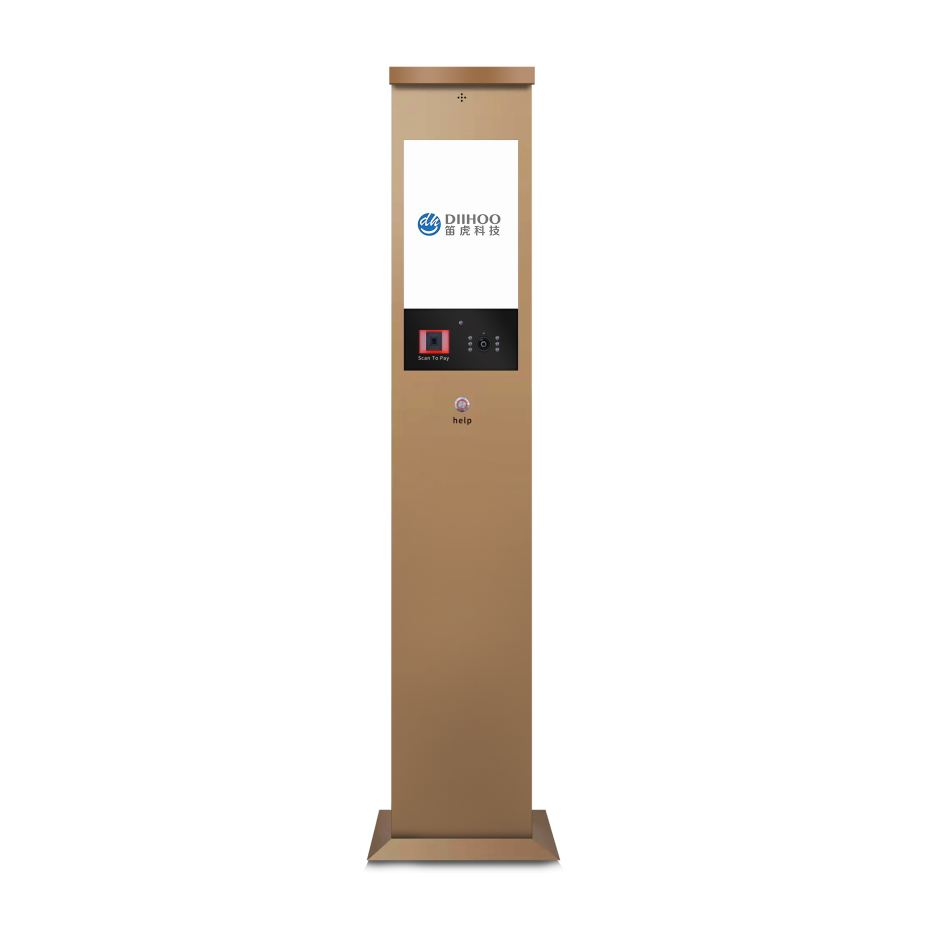

Full-function exit pillar, incorporating an industrial-grade high-definition LCD billing screen, real-time license plate/amount display, dynamic payment QR code, high-definition visual intercom, ground sensor vehicle integration, and SIP full-protocol compatibility, serving as the core component of fully unattended parking lot exits.
Cloud Agent
Robot Intercom System DH-P6
- One-Click Call/for help, Al Keyword/QR code scanning call
- SIP protocol supported
- Multi-terminal & multi-agent, remotegate opening and closing
- High-sensitivity microphone with a5-meter sound pickup range
- IP network architecture, cross-segment& cross-router
- Video linkage with multi-screen display
- Surveillance and monitoring function
- Broadcast and voice announcement function
- Audio and video recording function
- TV wall display
- Remote control via mobile APP
| Operating system | Embedded LINUX operating system |
|---|---|
| Sensor | 100W/130W/200W pixel CMOS sensor |
| Video compression | H.264/25FPS |
| Audio input | Built-in high-sensitivity omnidirectional microphone |
| Audio output | Up to 20W |
| Compression standard | G.711, G.713, GSM, DAC |
| Display Screen | 12.1" Industrial Display Screen (-30°C~85°C) |
| Gate Switch Interface | Open Gate Relay Route 1, Close Gate Relay Route 1 |
| QR Code Interface | 1 |
| Card Swipe Interface | 1 |
| Network | Wired/WiFi/4G |
| Network Port | 10/100M Adaptive Ethernet Port |
| Motion Detection/IO Interface | 3-Input |
| Power Supply | AC 220V |
| Power Consumption | ≤30W |
| Dimensions | 1350mm×230mm×90mm |
| Base dimensions | 310mm×170mm |
| Material | Tempered glass + lead-free galvanized steel sheet |
| Operating Temperature | -30℃~75℃ |
