One-Click Alarm Terminal – This system is applicable to a wide range ofscenarios, including Safe City initiatives, safe campuses, banks, hospitals,elevators, smart street lamps, communities, shopping malls, supermarkets,school classrooms, outdoor parks, enterprises, and unmanned parking lots.Boasting an all-weather waterproof design, it is robust and durable, supports wire-free installation for hassle-free deployment, and comes with multiplefunctions such as noise detection, silent alarm, HD video, two-way intercom,audio and video recording, electronic map display, and broadcast paging.
Alarm

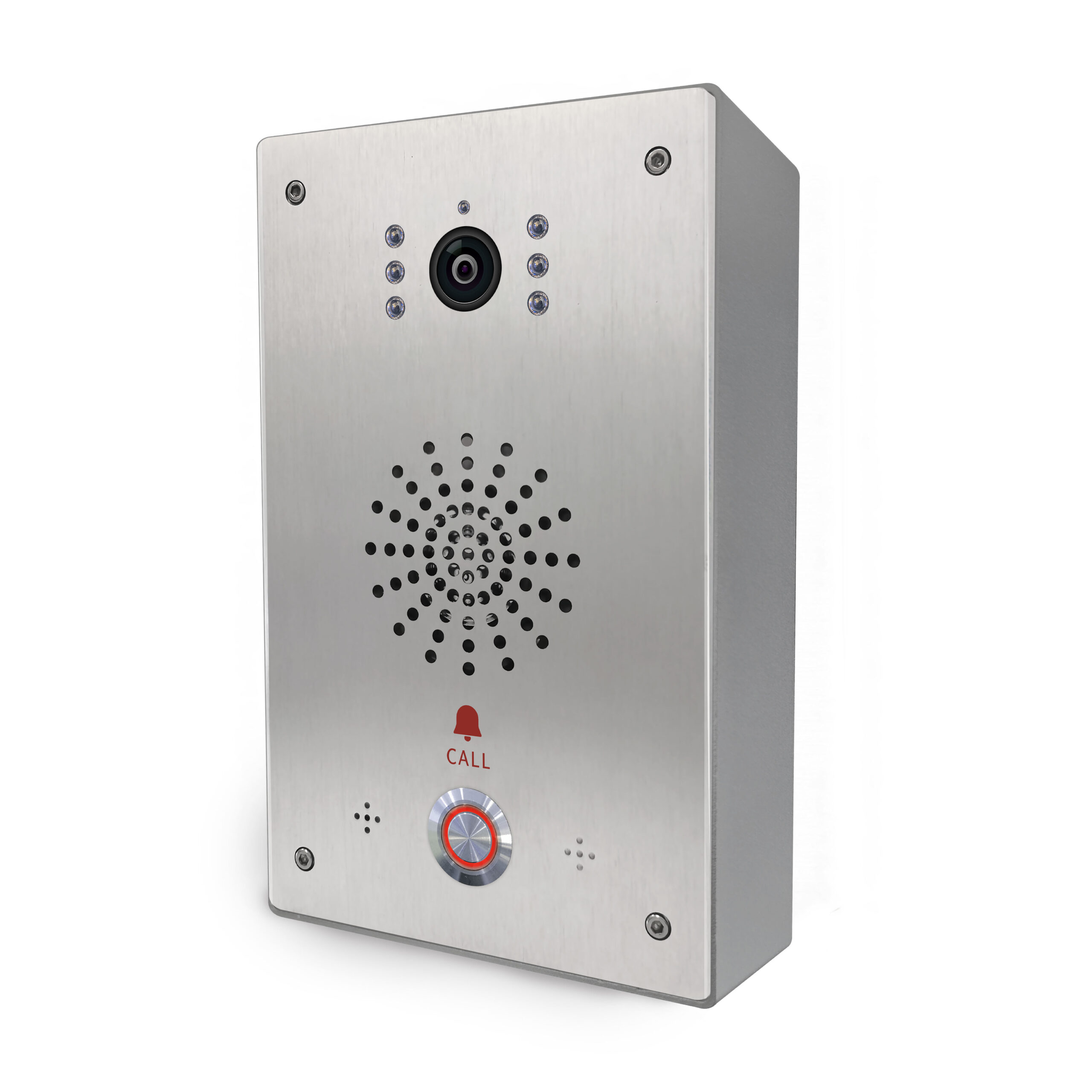

One-Click Call DH-X1
- Noise Detection & Automatic Alarm
- Wired / 4G Connectivity
- High-Sensitivity Pickup Microphone
- 5W High-Fidelity Speaker
- IP Network Architecture, Supporting Cross-Segment & Cross-Router Deployment
- Active Monitoring Function
- No Recording in Standby Mode, AutomaticRecording Triggered Upon Alarm
- Real-Time & Scheduled Broadcast Functions
- Supports External Audible and Visual Alarm Lights
- Supports External Smoke Detectors and Smoking Prohibition Devices
- Supports simultaneous alarm notificationson the server side, APP side, web side,agent side and management terminal- the first responder takes charge ofthe handling.
| Operating system | Embedded LINUX operating system |
|---|---|
| Sensor | 200W pixel CMOS sensor |
| Network | Wired /WIFI/4G |
| Video Compression | H.264/25FPS |
| Audio Input | Built-in High-Sensitivity Omnidirectional Microphone |
| Audio Output | Built-in 5W speaker + 30W amplifier output |
| Audio format | G.711, G.713, GSM, PCM |
| Sound quality | Professional echo cancellation and noise suppression |
| Network Protocol | SIP, TCP/IP, DNP |
| Network Port | 10/100M Adaptive Ethernet Port |
| Alarm Interface | 3 digital input ports, 2 digital output ports |
| Power supply | POE/DC 12V 1A |
| Power consumption | ≤8W |
| Material | Aluminum alloy brushed panel |
| Dimensions | 115mm×185mm×40mm |
| Installation method | Wall-mounted |
| Operating temperature | -30°C~75°C |
FAQs
Does it support video and voice communication?
Yes, it supports HD video and full-duplex intercom.
Is it suitable for outdoor environments?
Yes, it features all-weather waterproof design.
What can this one-touch alarm terminal do?
It supports alarm, intercom, and broadcasting.
