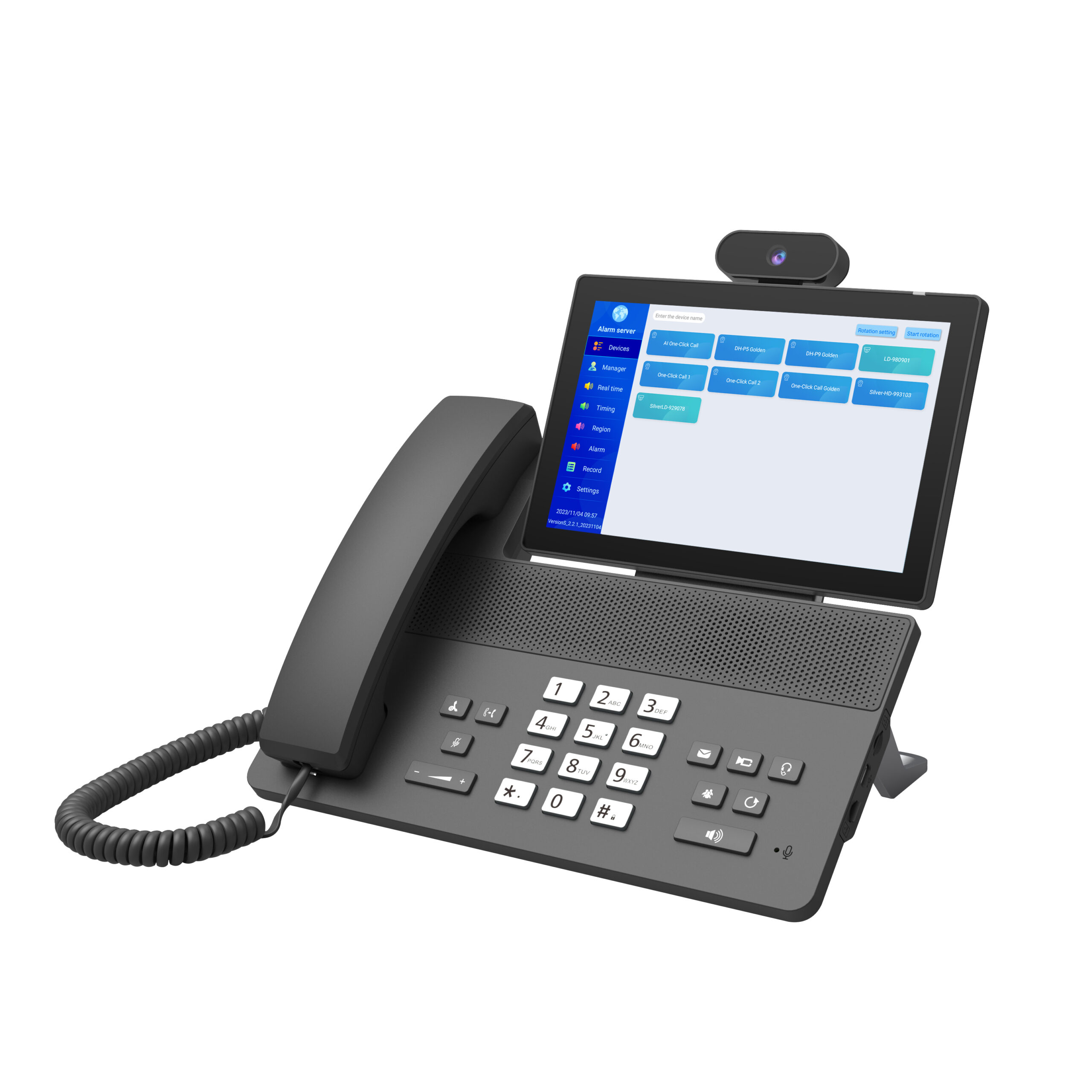

This product is an alarm management host applied in one-key alarm broadcasting systems. It can be used with alarm server software or independently in offline mode, supporting both LAN and Internetusage. It features multiple functions, including two-way voice intercom, voice broadcasting, automatic queuing of multiple alarms, audio-video recording, recording playback, and alarm record storage.
Management Station
Management Station DH-G08
- Support one-key answer and hang-up functions.
- Support gooseneck microphone and hands-free calling.
- Support voice broadcasting of IP intercom names.
- Support full-duplex two-way voice intercom.
- Support audio-video recording function of the management host (requires TF card insertion).
- Support audio-video playback and power amplifier functionson the management host.
- Support remote control of door opening and closing.
- Support real-time voice broadcasting and file broadcasting.Support broadcasting to different groups of intercoms.
- Support one-key alarm broadcasting, such as fire broadcasting.Support automatic voice broadcasting when intercoms areoffline.
- Support setting different ringtones for different buttons of multi-button intercoms.
- Support saving 2,000 alarm records.Support active monitoring and listening to intercoms by themanagement host.
- Built-in WiFi module, supporting WiFi networking.
- Support HDMI output for connecting to large-screen displays.8-inch, 1280*800 pixel IPS high-definition touchscreen.
| Processor | Cortex A55 1.8G 4-core |
|---|---|
| Operating system | Android 11.0 |
| Camera | 800 watts |
| Video Compression | H.264/25 frames per second |
| Audio input | Built-in high-sensitivity omnidirectional microphone |
| Network protocol | SIP, TCP/IP, DNP |
| Network port | 10/100/1000M LAN*2 |
| Storage | 4+32GB |
| Power consumption | Less than 10W |
| Screen Size | 8-inch LCD Display (1280×800) |
| Appearance Dimensions | 273mm×226mm×285mm×42mm |
| Interface Type | USB*2, Type-C*1 |
| Material | Capacitive Touch |
| Operating Temperature | -10℃~50℃ |
FAQs
What functions does this alarm host provide?
It supports intercom, broadcasting, and recording.
Can it work without a server?
Yes, it supports offline standalone operation.
What is this alarm management host used for?
It manages one-key alarm and broadcasting systems.
